Home Vaxis Vaxis ATOM 500 SDI – Wireless Transmitter & Receiver Kit
vMix HD + Vset Pro $795.00
Back to products
Storm 1000s kit $2,880.00

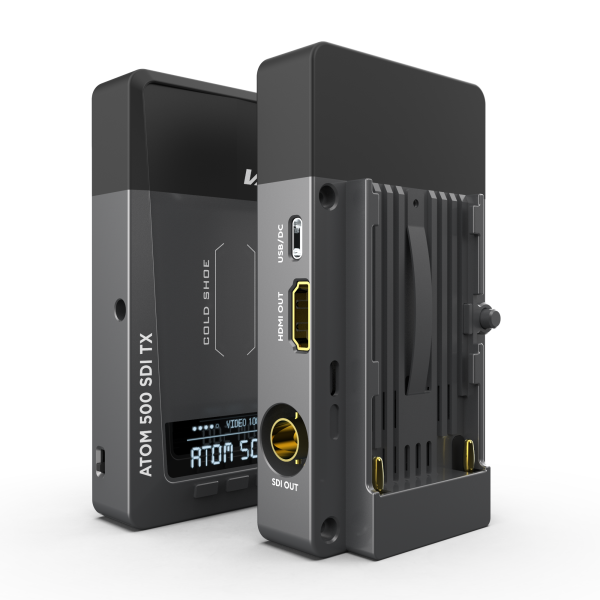

Vaxis ATOM 500 SDI – Wireless Transmitter & Receiver Kit

$499.00

BUY NOW

Sporting both 3G-SDI and HDMI connections, the ATOM 500 SDI Wireless Video Transmitter and Receiver Kit from Vaxis enables transmitting visually lossless, H.265 video signals to the Vaxis receiver with less than 80 ms latency. The transmitter sends a powerful line-of-sight signal up to 500′

Compare
Add to wishlist
SKU: VAC-S500-00 Category: Vaxis
Share:
  • Description
  • Additional information
  • Reviews (0)
Description

Sporting both 3G-SDI and HDMI connections, the ATOM 500 SDI Wireless Video Transmitter and Receiver Kit from Vaxis enables transmitting visually lossless, H.265 video signals to the Vaxis receiver with less than 80 ms latency. The transmitter sends a powerful line-of-sight signal up to 500′ and it can also multicast via Wi-Fi to up to three mobile devices for monitoring.

The transmitter features one 3G-SDI and one HDMI input while the receiver has one 3G-SDI and one HDMI output. Each unit features a bright, clear OLED display and they have a cooling fan that can be turned on and off to prevent noise during your production. They can be powered using its USB Type-C connector with the included cable or by using a separately available L-series battery. The USB input can also be used to upgrade the firmware.

Transmitter and receiver kit transmits 1080p wireless video up to 500′ line of sight

Transmit H.265 video with very-low latency

Transmitter features one 3G-SDI and one HDMI input, and the receiver features one 3G-SDI and one HDMI output

Units are powered by either a USB Type-C power source or by using an L-series battery on its integrated plate

Multicast support for transmitting video via Wi-Fi to up to three iOS devices running the Vaxis Vision app

Adjustable cooling fan that can be turned on and off

Bright OLED screen

Lightweight metal housing; both units are the same size with integrated antennas

Large menu buttons are easier to press than on the HDMI only model

The unit’s temperature screen can read out in Fahrenheit

A long press on the right menu button displays a WQR code, which makes it simpler to connect your phone/app to control the units

The unit supports manual and automatic channel scanning

图片关键词图片关键词图片关键词图片关键词
Additional information
Weight 1 lbs
Dimensions 8 × 6 × 4 in
