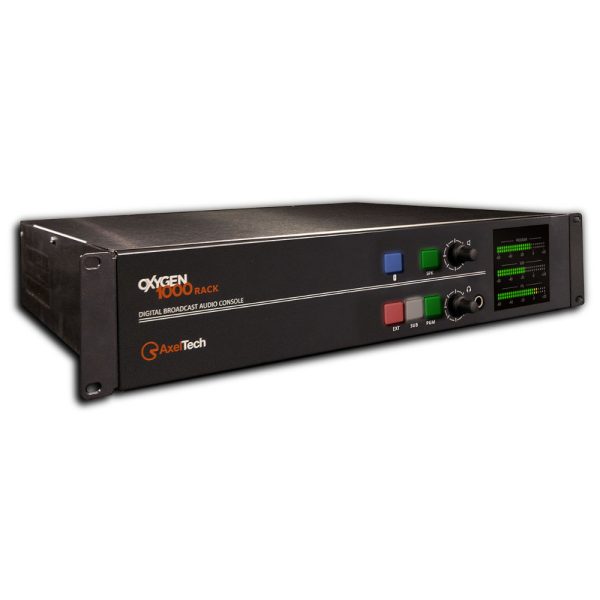

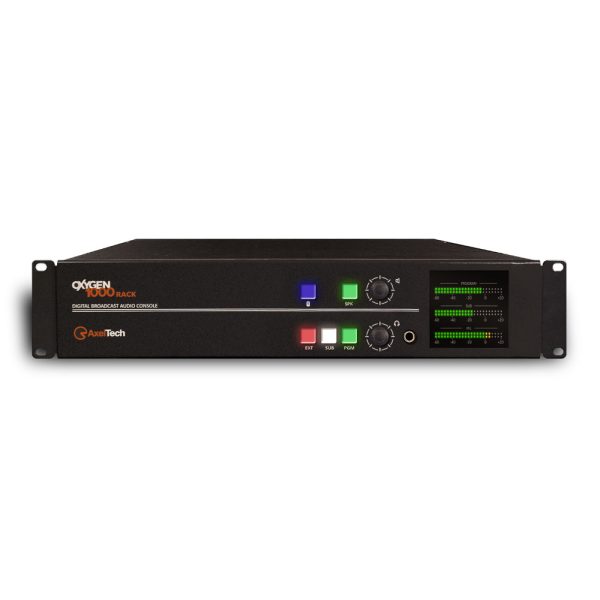

Oxygen 1000 Rack is a fully-digital broadcast console designed for on-air production in space-limited environments such as OB vans, or situations when the operator needs to remotely control the console.
This compact, 2U rackmount unit features 3 microphone inputs with Automix, powerful internal audio routing, and a wide range of controls and I/O- all in a rugged chassis for small spaces. Oxygen 1000 Rack DSP based audio processing delivers high-end quality and guarantees latest features and flexibility.
Reliable and easy to use as an analogue mixing console Oxygen 1000 offers top class features: Low Latency, Users Preset, Smart Keys, EQ, Compressors, Telephone Hybrid, HDMI Output, Analogue and Digital I/O, USB, Bluetooth, Dante AoIP, Telco, Presenter Talk Box.
Oxygen 1000 can be remotely controlled through a dedicated application.

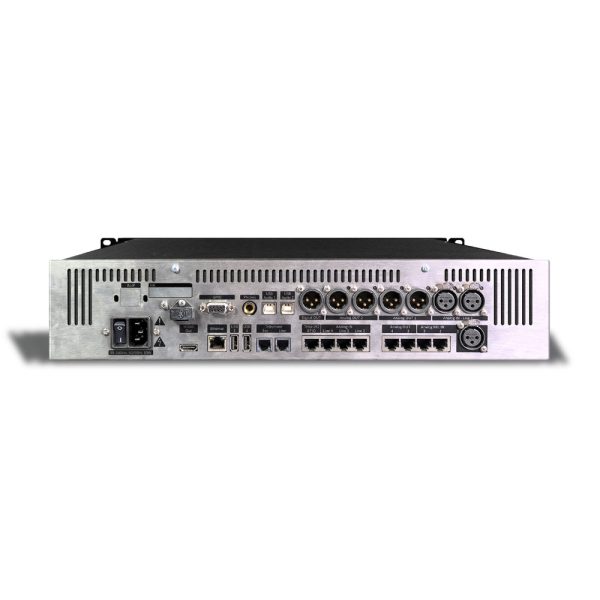

Input & Output
- 3 microphone inputs with Automix
- 4 stereo analog inputs
- 4 stereo analog outputs
- 1 built-in telephone hybrid
- 1+4 telco interface with GPIO
- Bluetooth audio interface
- 1 digital Out (AES/EBU)
- 2 USB audio interfaces (disabled with Dante option installed)
- 8 stereo inputs + 8 stereo outputs via Dante (optional)
General
- Fully-digital broadcast console in short-depth rack enclosure
- A/B Fast source switch buttons for each fader
- 4+1 busses (PGM, SUB, Aux1, Aux2, PFL)
- Near 0 latency (< 0,7 ms I/O)
- Digital Signals Routing via the 32×32 internal matrix
- Complete remote control using a dedicated application
- Remote configuration and maintenance via Web Interface
- User-definable Presets & Snapshot
- 5 bands fully parametric Equalizer on every input
- Dynamic Processor with expander and compressor section on each microphone inputs
- Advanced and configurable Monitor Facilities for Control Room and Studio
- Customizable RGB colored buttons
- High Resolution (120 leds) meter bars for outputs
- HDMI Out for console status display
- 2 Timers (Ctrl-Room and Studio microphones timers on HDMI Monitor)
- Optional TalkBox for guest and presenter
Options
- Talk Box
- RJ45 adapters for:
o Mic with GPIO
o Line In
o Line Out with GPIO
o Telco with GPIO
