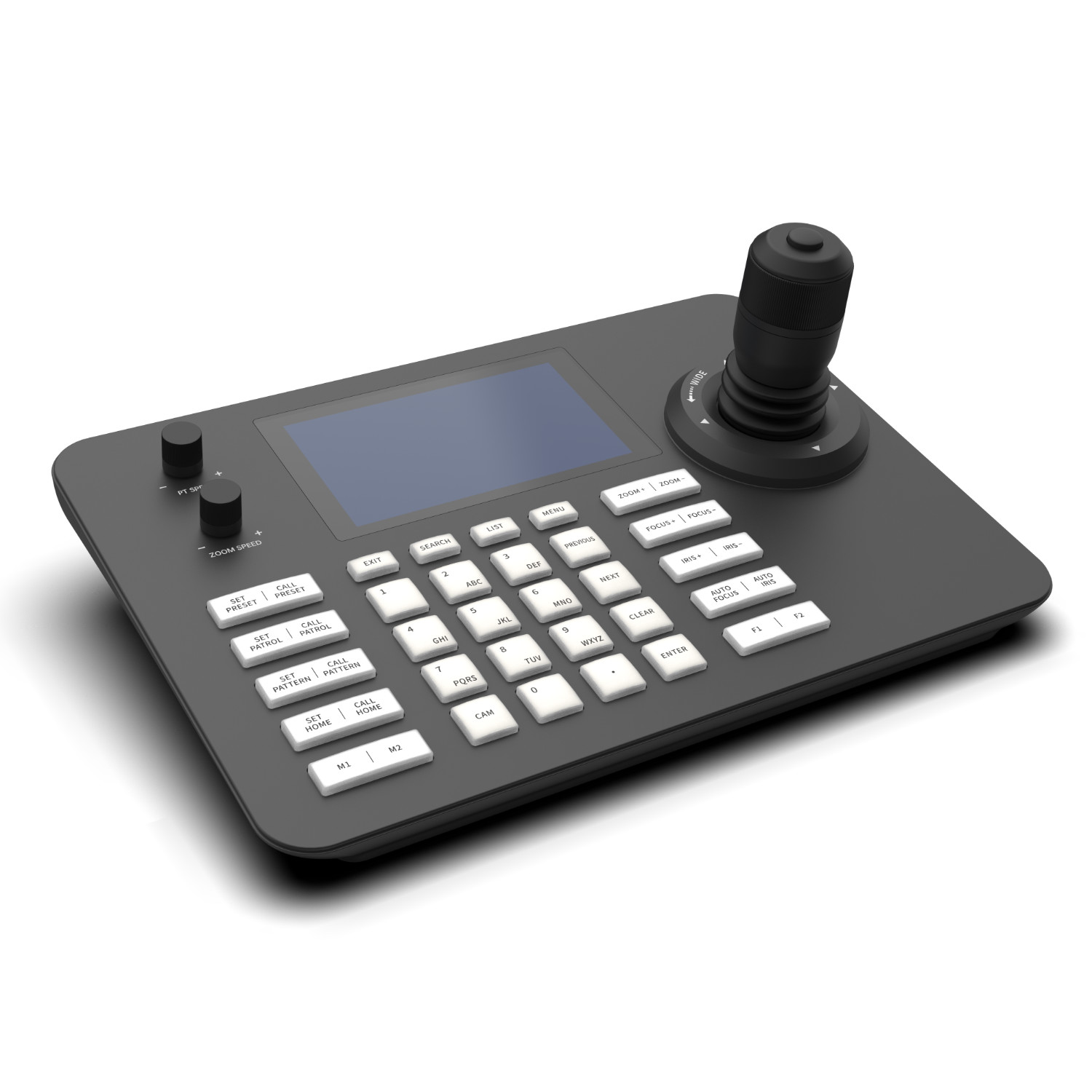

PTZCam PTZ View IP Control Surface with Video Preview
$399.00
BUY NOWIP PTZ control surface with video decoder and screen for preview
Description
Affordable Network PTZ Controller for Schools, Churches, and Meetings
Make controlling your PTZ cameras a breeze with PTZ View IP: A PTZ Controller with a video preview screen for decoding IP video from your PTZ camera.
Simply select the camera and the video will appear on the LCD on the controller making adjusting the input easy.
The PTZ View IP upports presets and all other functions of the camera’s image adjustment.
Technical Specifications
| Protocol Support | Onvif 2.8, Pelco-D/P |
| Max equipment | Supports up to 254 devices |
| Decoding | Supports H.265/H.264 |
| Resolution | Max 1080p for 1 channel: 1920×1080 @ 30fps |
| Joystick | 4D (control: up, down, left, right, zoom, confirm) |

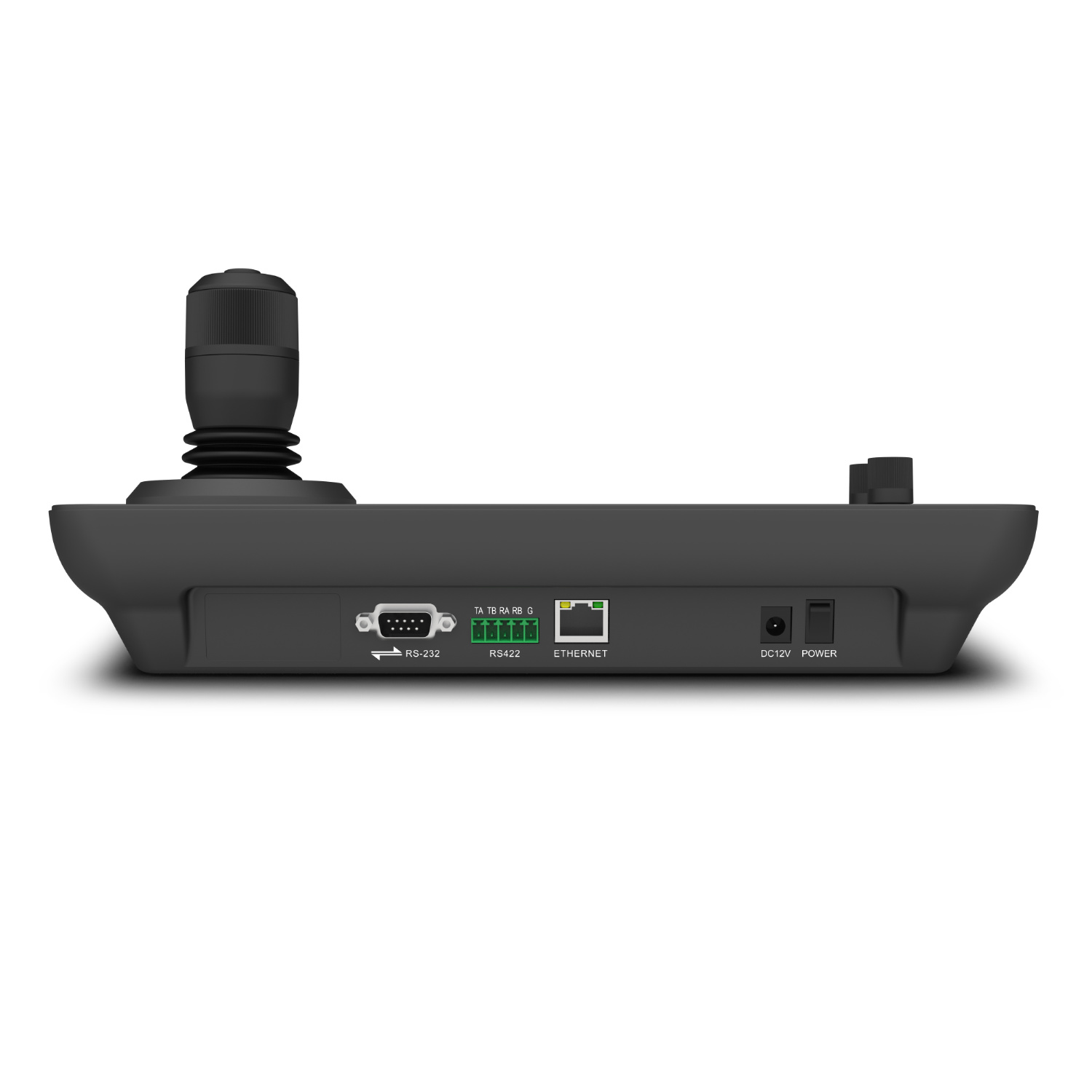

| Interfaces | 1x RJ-45 (Network / POE), 1x RS422/RS485 |
| Display | 5-inch 1280×720 LCD |
| Sound | Key-touch beep on/off |
| Power Supply | DC12V-2A / POE |
| Power Consumption | <5W |
| Operating Temperature | -10℃~55℃ / 14°F~131°F |
| Storage Temperature | -10℃~60℃ / 14°F~140°F |
| Dimensions | 11.69″ x 8.26″ x 4.67″ (297mm x 210mm x 118.7mm) |
| Weight |
1.96 lbs (0.89kg) |
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 17 × 12 × 6 in |
